Description
- Power Source: DC 10V-18V
- Language: English
- Detecting Range: 0.6-183 Meter
- Power Input: DC 10-18V
- Sonar Frequency: Two Modes: Cable: 200Khz, Wireless: 125Khz
- Sonar Coverage: 90 degrees(wireless mode)/45 degrees(cable mode)
- Brand Name: LUCKYLAKER
- Origin: Mainland China
- Display: 2.8inch LCD
- Back lighting: On/ Off White LED
- Depth Capability: 147feet( 45 m)(wireless mode)/328feet(100m)(cable mode)
- Sonar Coverage: 90 degrees/125Khz(wireless mode)/45 degrees200Khz(cable mode)
- Wireless operating range: 328 feet(100 m)
- Power: 3.7 V rechargeable battery
- Wireless sensor power requirement: 1*CR2032 battery
- Waterproof design: floating& waterproof

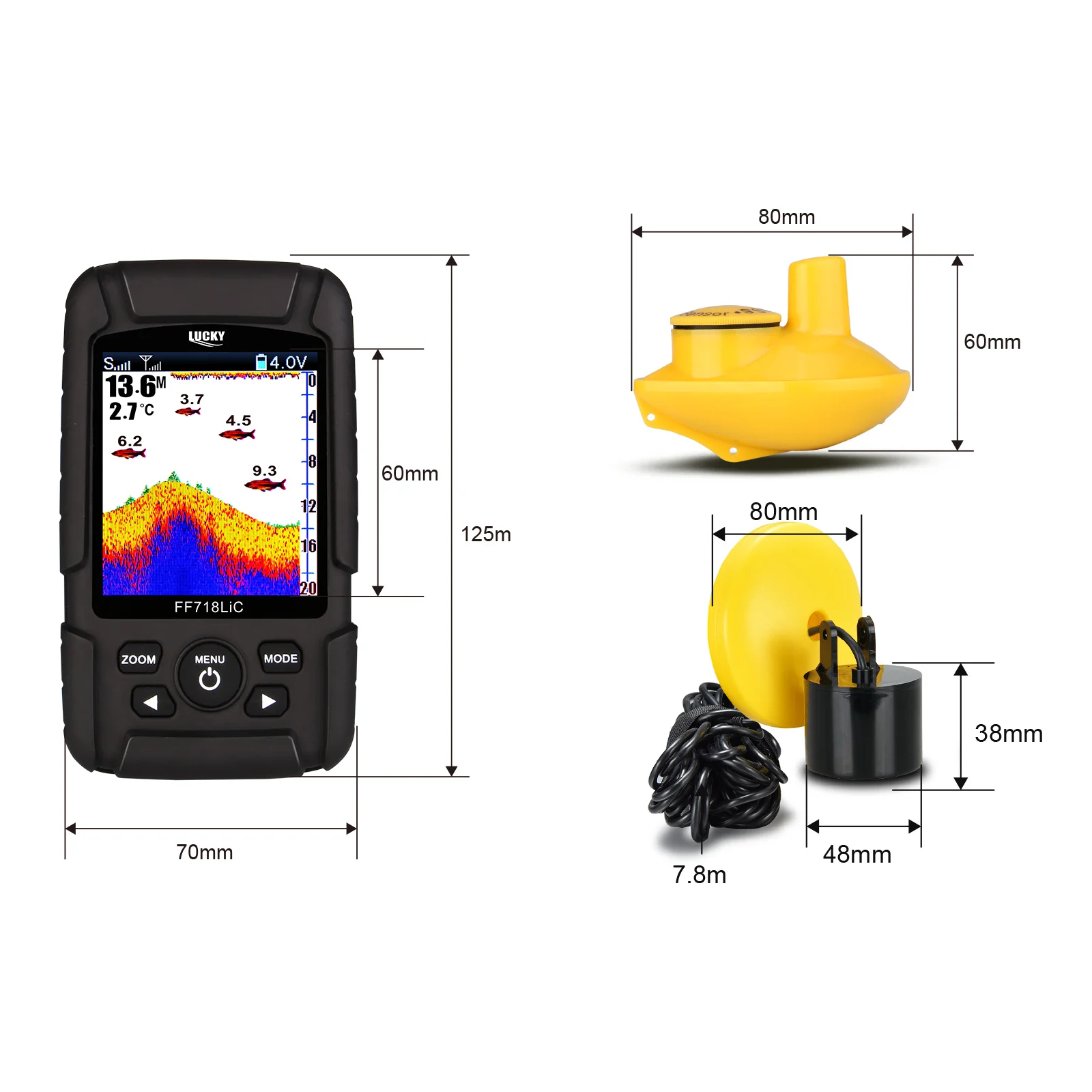

PRODUCT SPECIFICATION OF FF718LIC:
1) Display: 2.8inch LCD
2)Back lighting: On/off White LED
3) Depth Capability: Cable transducer 328feet(100m);Wireless 147feet(45m)
4) Sonar Coverage: 45 degrees beam angle in 200Khz(Cable transducer)/ 90 degrees beam angle in 125Khz(Wireless)
5) Wireless operational Range: 328feet(100m)
6) Power: 3.7V rechargeable lithium batteries
7) Floating& Waterproof design
8) Wireless Sensor battery reauirement: one replaceable CR2032 battery
9) Water depth,water temperature, fish location, bottom contour can be constantly obtained from the water
10) User selectable sensitivity,zoom,units,depth range,shallow alarm,fish icon,fish alarm,and chart speed setting
11) Built in memory stores sonar setting when the fish finder is turned off
12) Wireless Sensor could shut down when it is out of the water
13) Operational Temperature: 14degF to 122degF(-10degC to 50degC)

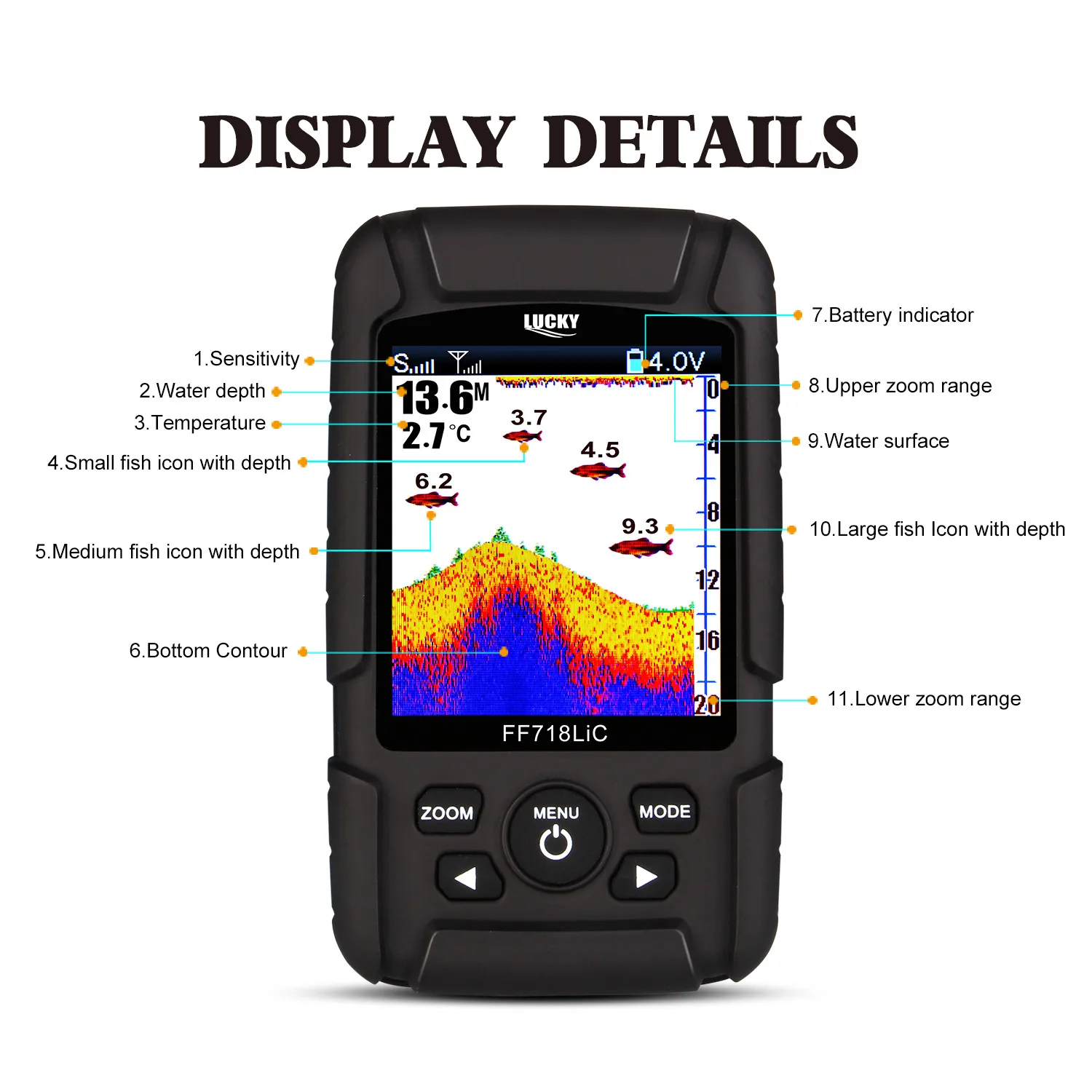

1.Sensitivity
2.Water depth
3.Temperature
4.Small fish icon with depth
5.Medium fish icon with depth
6.Bottom contour
7.Battery indicator
8.Upper zoom range
9.Water surface
10. Large fish lcon with depth
11. Lower zoom range

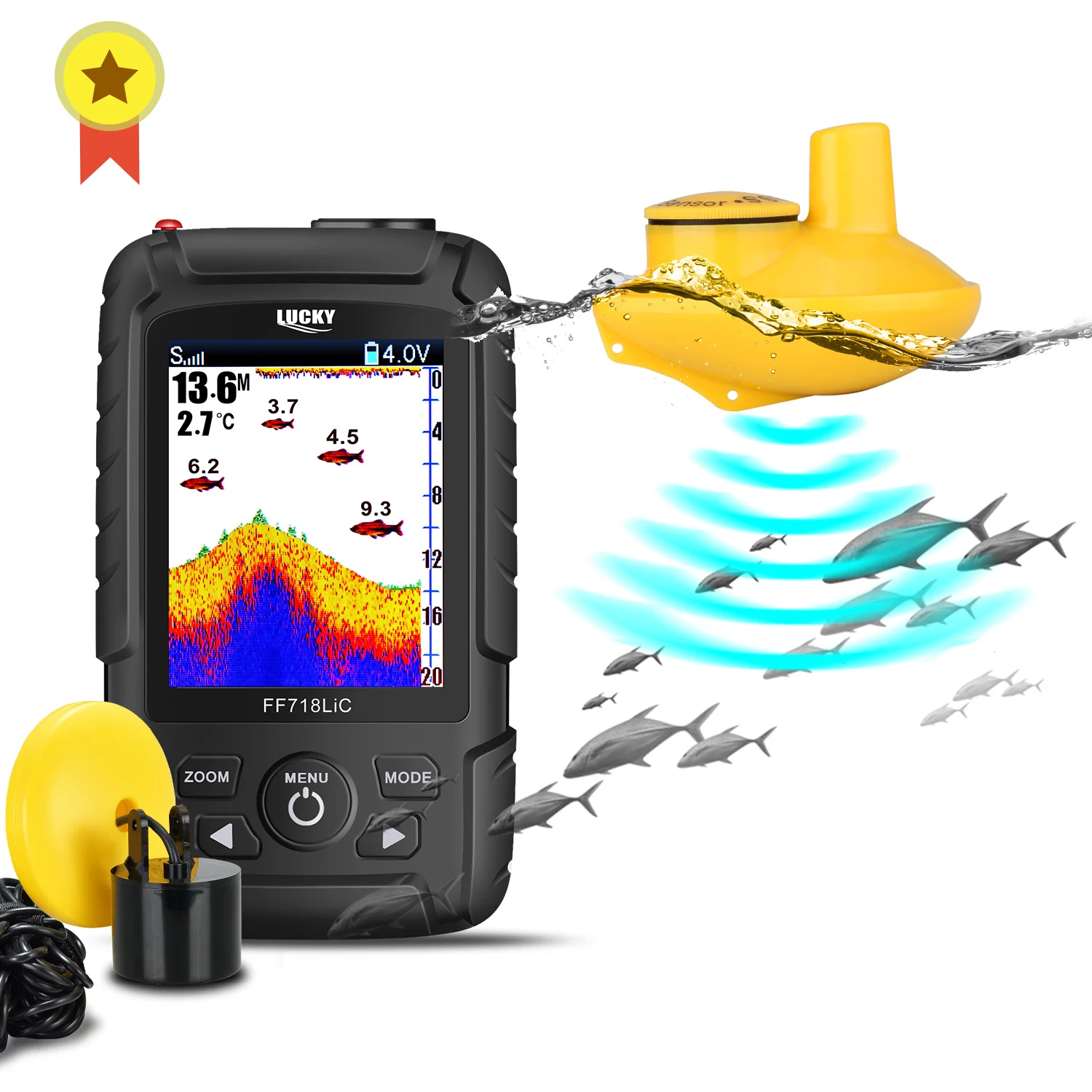

Precise narrow beam is used for high accuracy returns of fish, structure,detail and bottom profile.Wide beam provides ample search area for fish, bait fish, and bottom structure.
Wireless mode is 90°in 125KHZ
Water and fish information can be constantly obtained.
The sonar can detect water up to 45m and wireless operating range is 100m.
The sonar can detect water up to 100m,45degree beam angle in 200khz.
1.Seal cover
2.Seal ring
3.Battery place
4.Sonar detection
5.Hole tied to fishing line
1.Float
2.transducer
3.cable
Our fish finder are used in different fishing ways: night fishing probe,turbid fish probe and ice fishing probe environment.
Attention:
1.1.Default power adapter is European. For UK or USA, please contact customer service.
2.Although the fish finder is waterproof, but considering high corrosion and penetration of salt water, if there is water in the fish finder, please wipe out the water immediately with cloth, thanks.
3.Use fish finder in smooth and hard place (like water tank, swimming pool, water bucket, or fish pond) will cause repeatedly sonar reception, or the the detection can be inaccurate.
Please test in outdoor deep water.
4.Please test the fish finder in the outside water ,which keep the monitor abvoe 1M and,detect the water dept h is 1M too.
Language menu:English/German/Russian/Italian/Spanish/French/Chinese/Japanese/Korean/Hungarian/Portuguese/Finnish/Polish/Dutch/Greek/Swedish/Czech/Danish/Romanian/Slovak
Manual:
English/German/Russian/Italian/Spanish/French/
